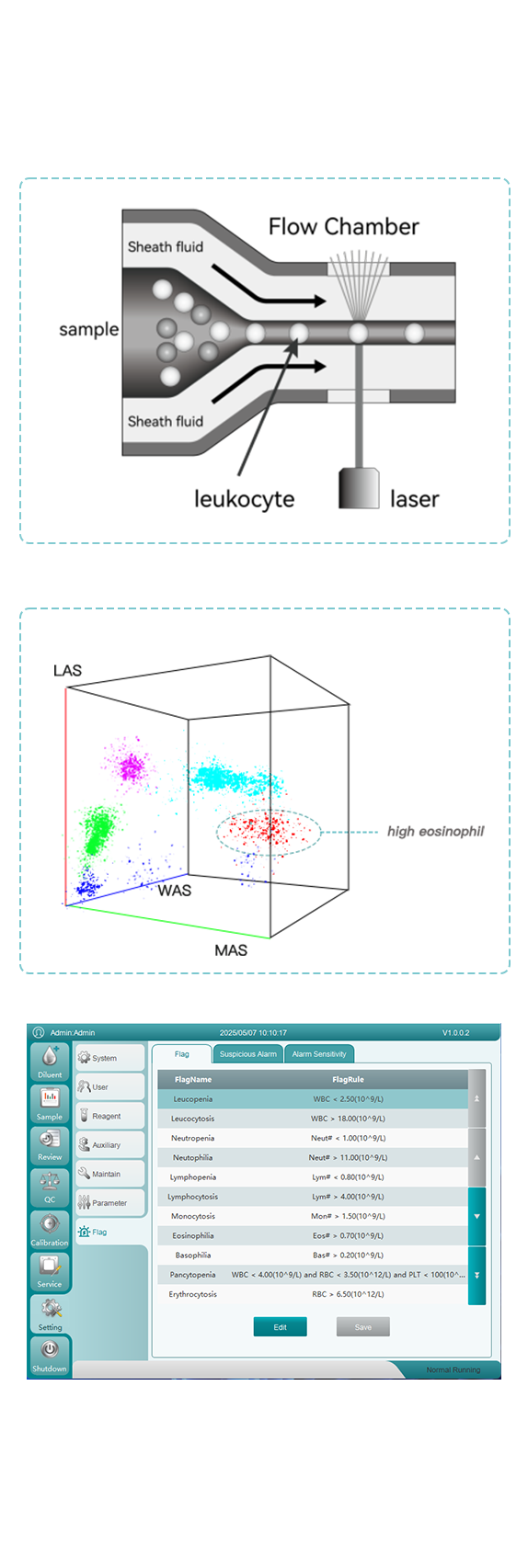

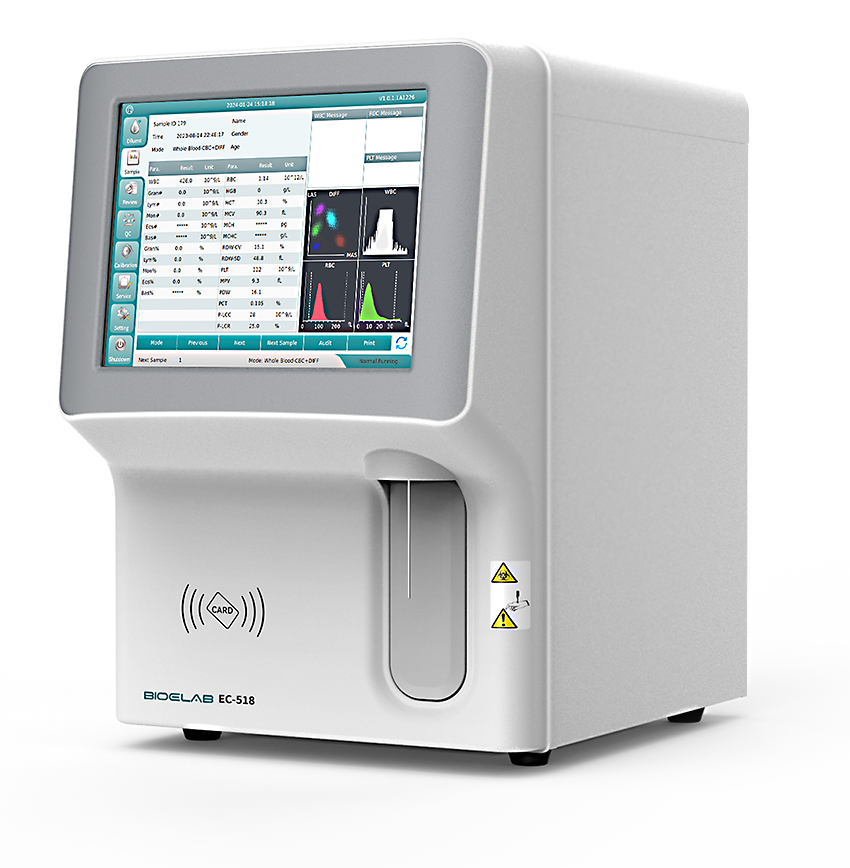

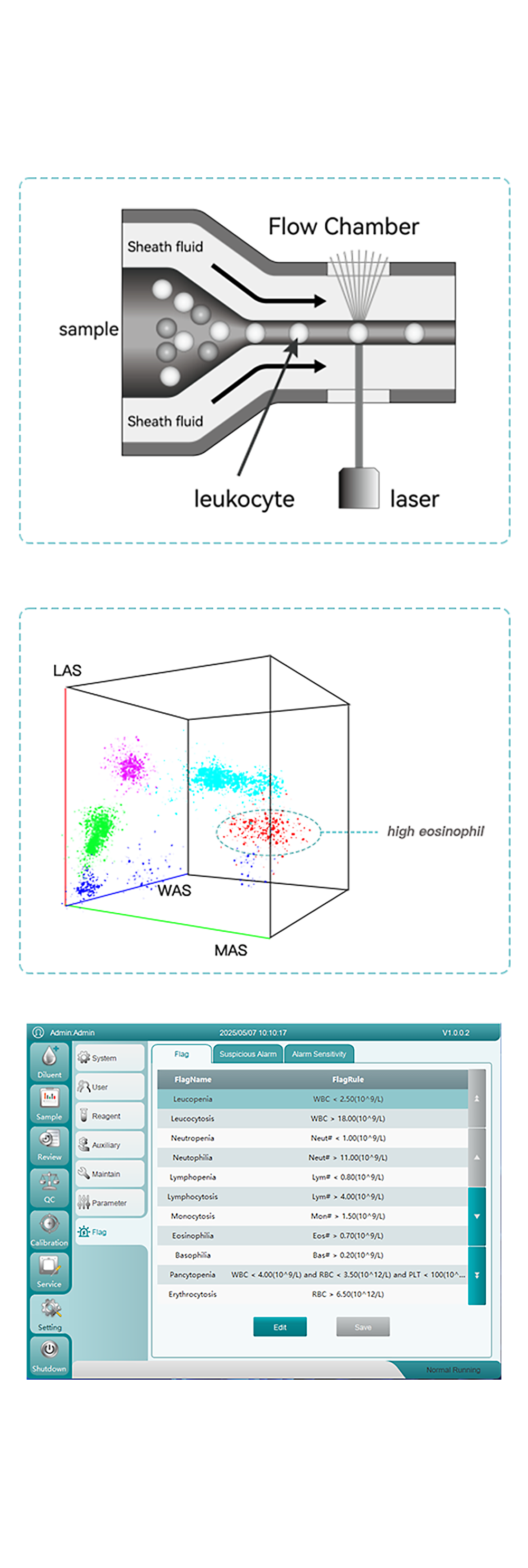

● Based on sheath flow cytometry+tri-angle laser scatter technology, the EC-518 supply full 5-diff WBC results.
● Extra optical angle and recognition algorithm work for high eosinophil sample. Dedicate basophil channel has a better performance on basophil counting.
● Abundant words flag and suspicious alarm information.

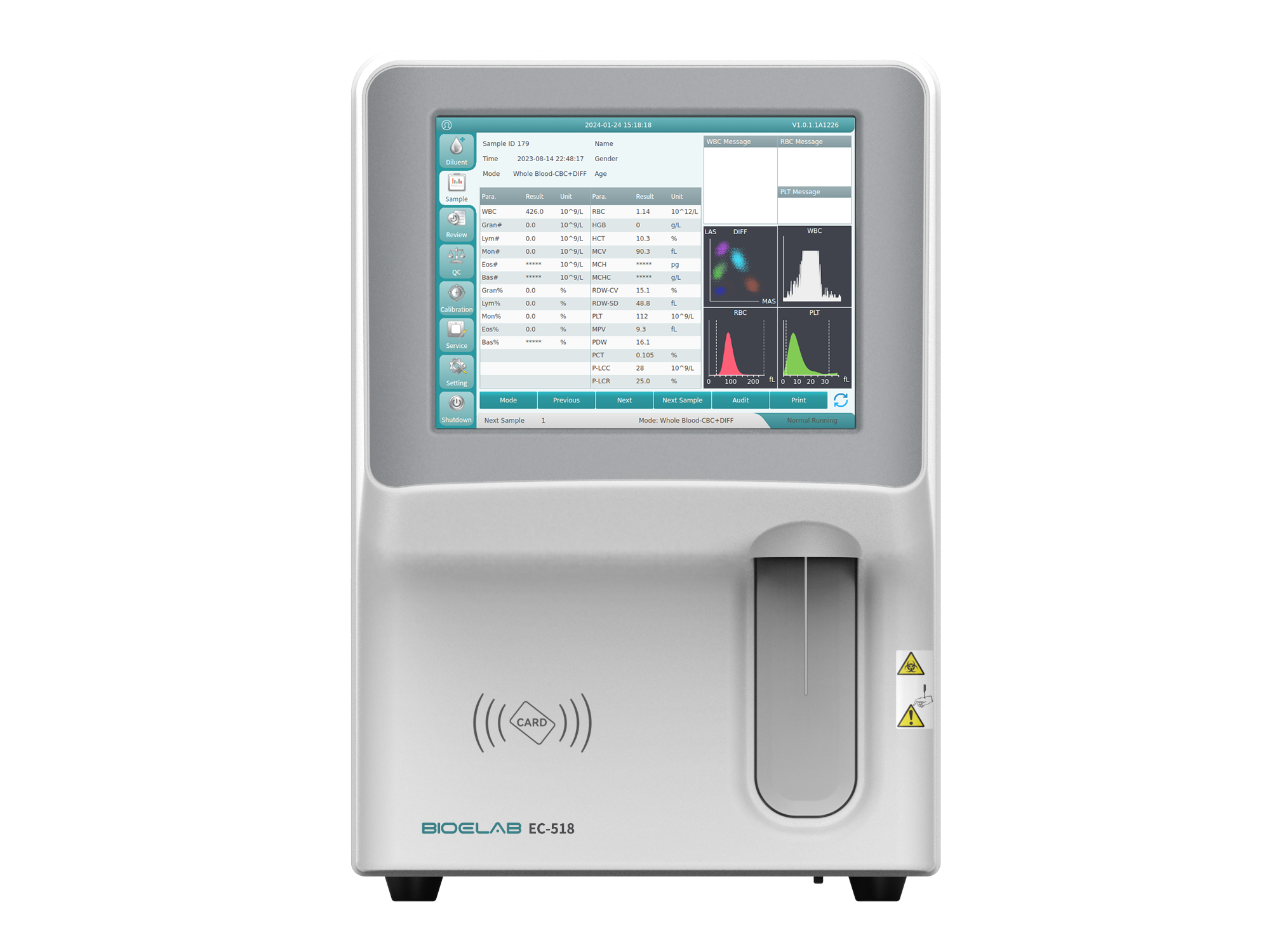

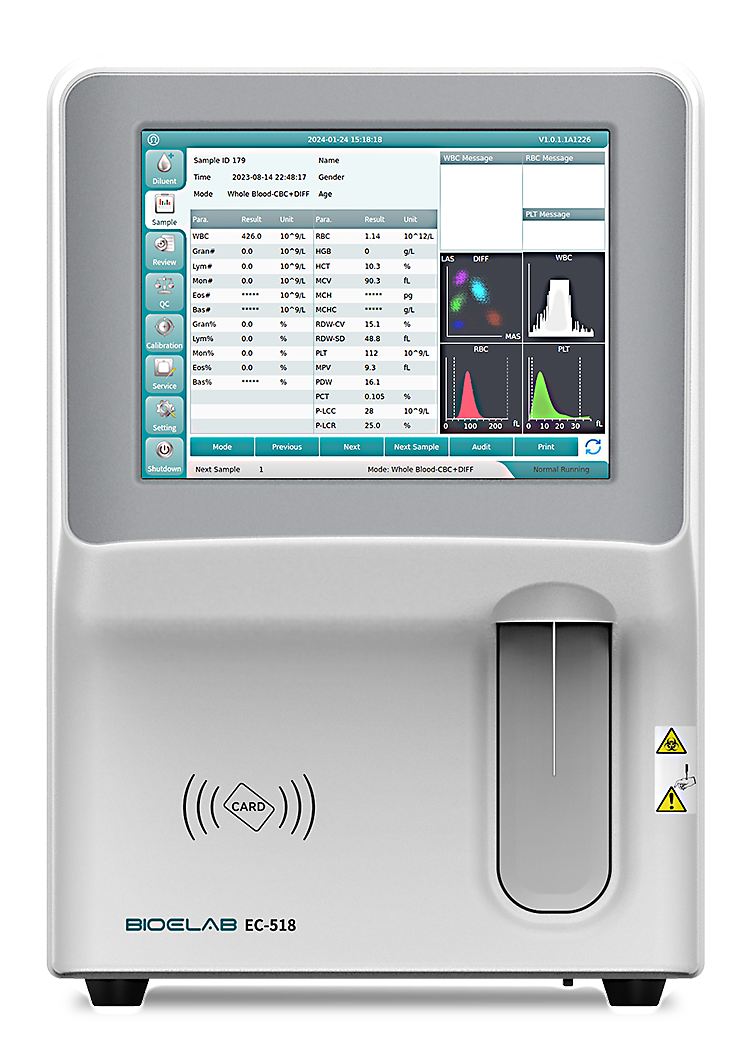

● Compact in size and lower weight, which helps the small labs to save space.

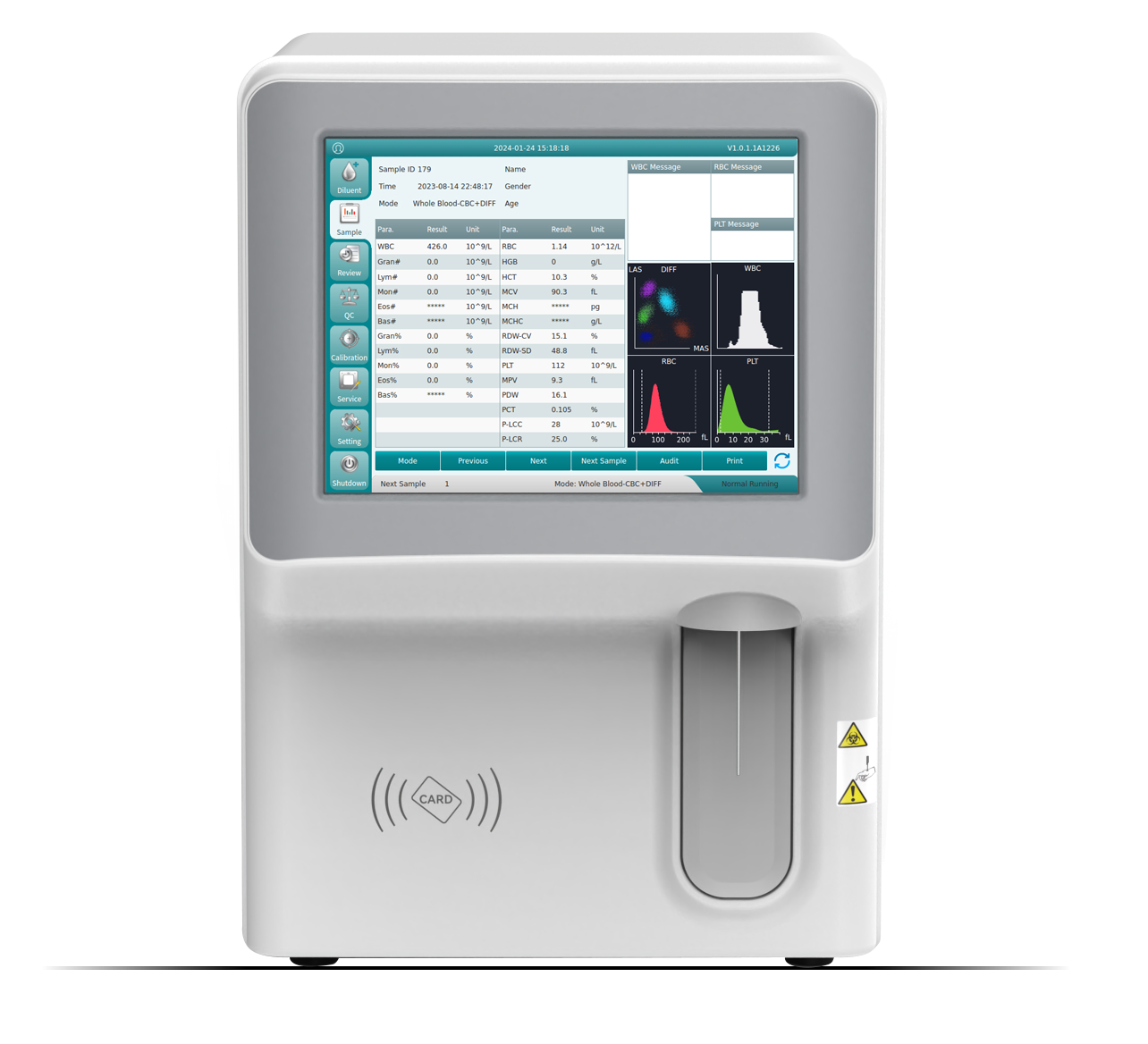

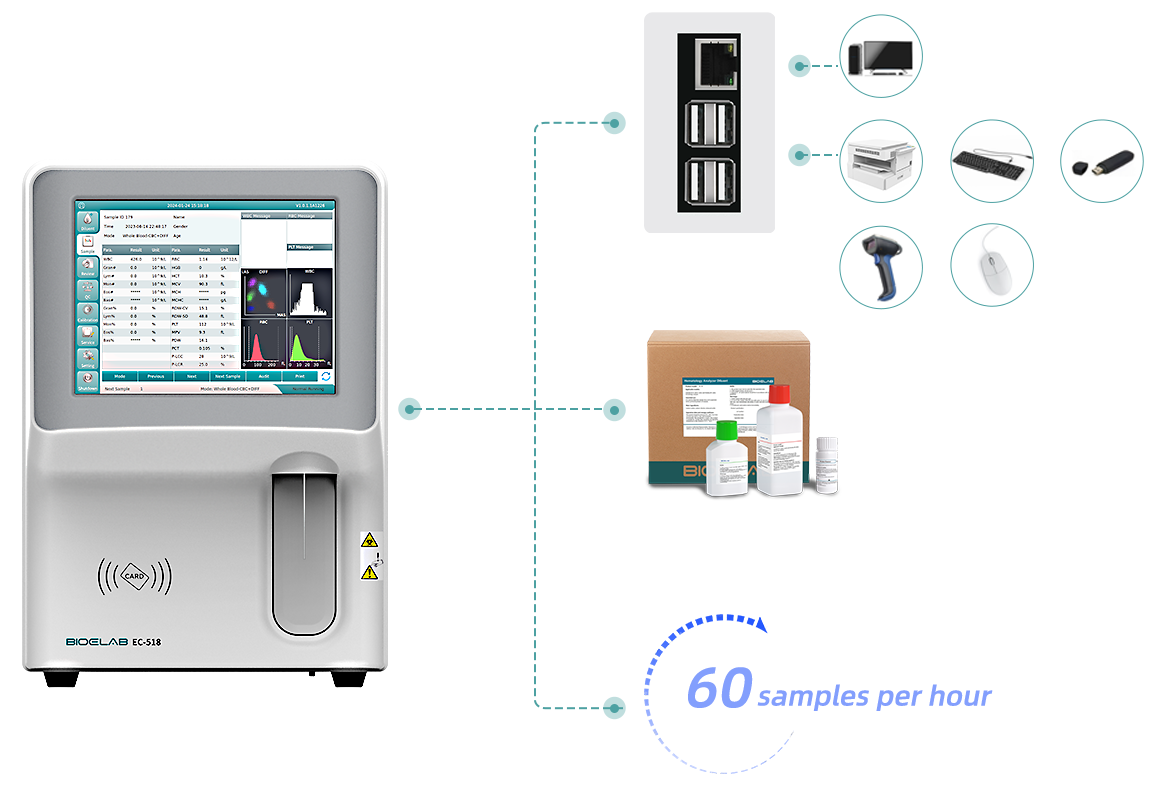

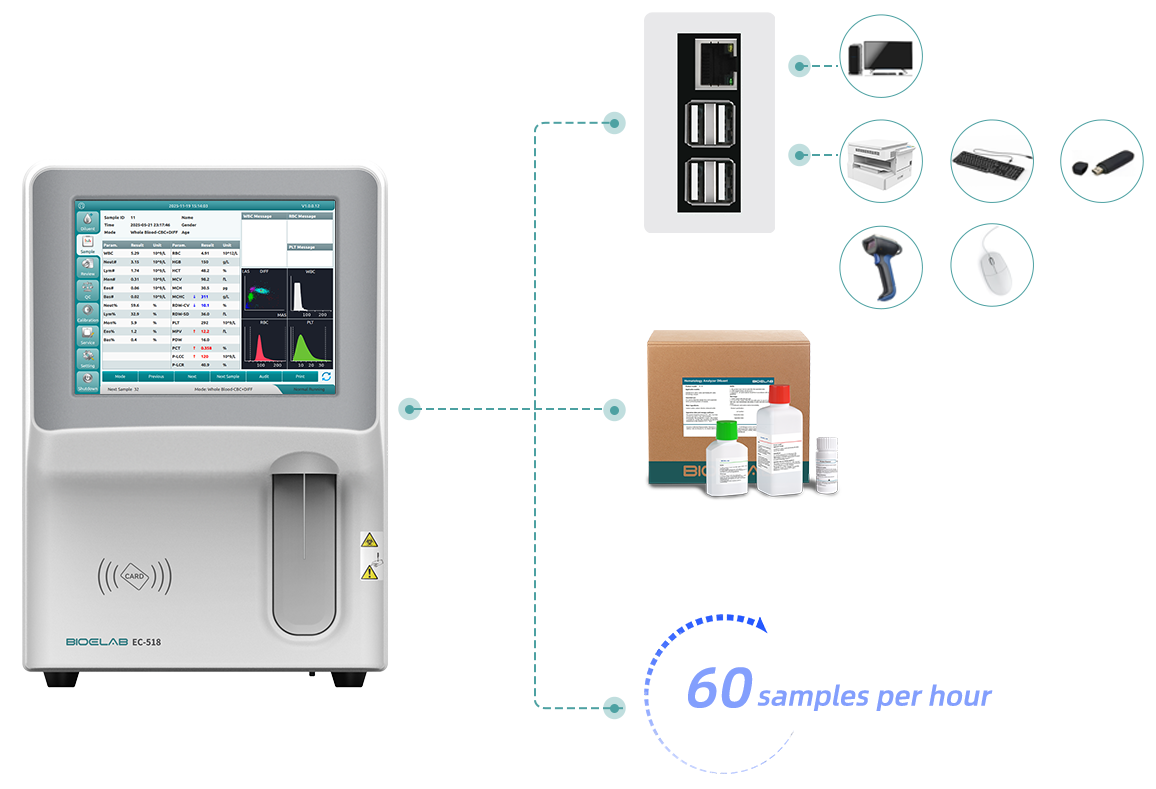

The 10.4 inch TFT touch screen with a wide viewing angle, brings convenience to clinicians. Direct connection to at least 15 types USB printer models.
Only three routine reagents are required.
60 samples per hour in CBC+DIFF mode.
60 samples per hour
Whole blood and Prediluted blood

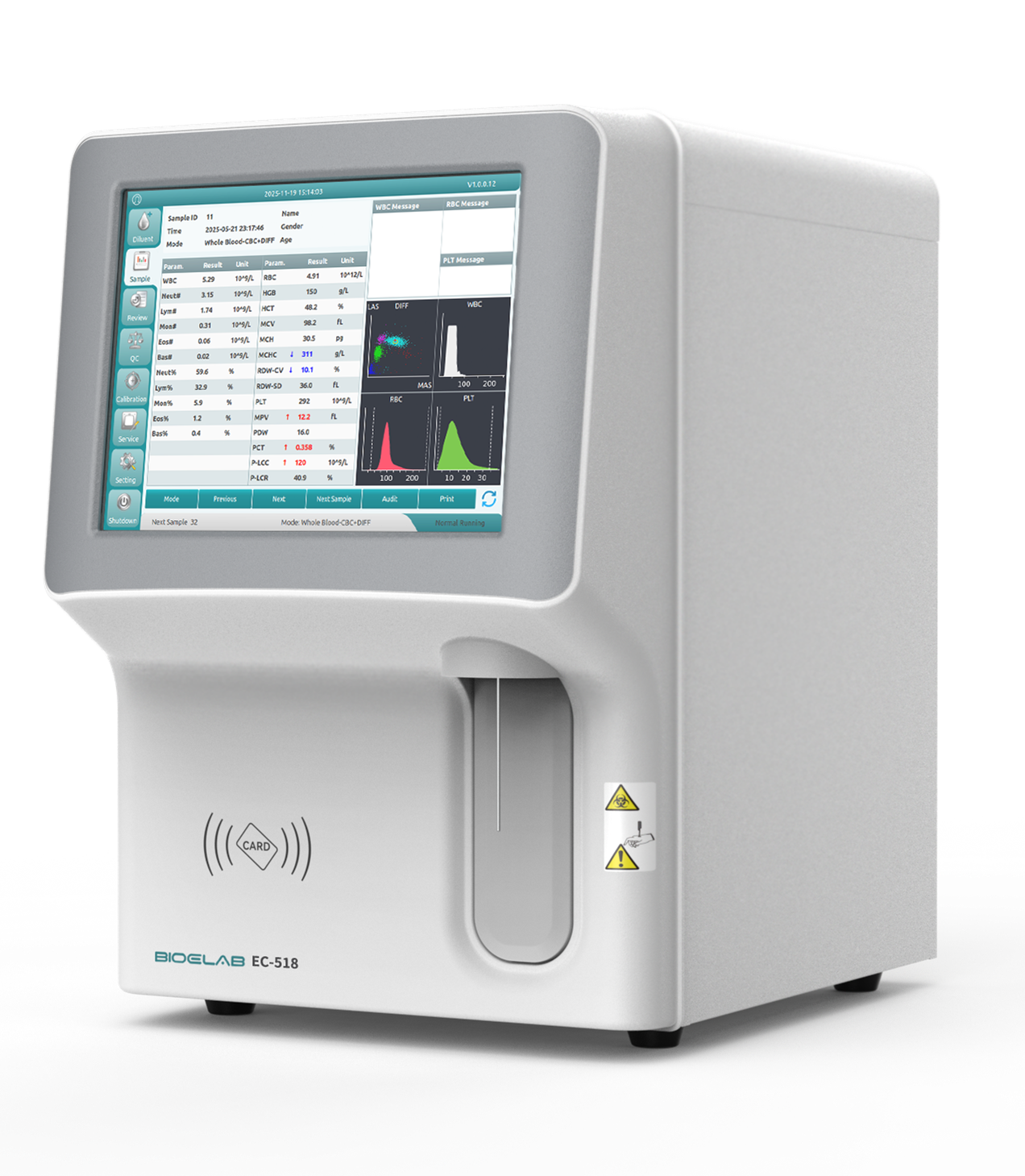

Sheath Flow cytometry(FCM)+Tri-angle laser scatter method for WBC 5-part differential analysis and WBC counting; impedance method for RBC and PLT counting; cyanide free reagent for hemoglobin measurement
25 report parameters; 12 research parameters; 3 histograms for WBC,RBC and PLT; 3 DIFF scattergrams and 1 BASO scattergram

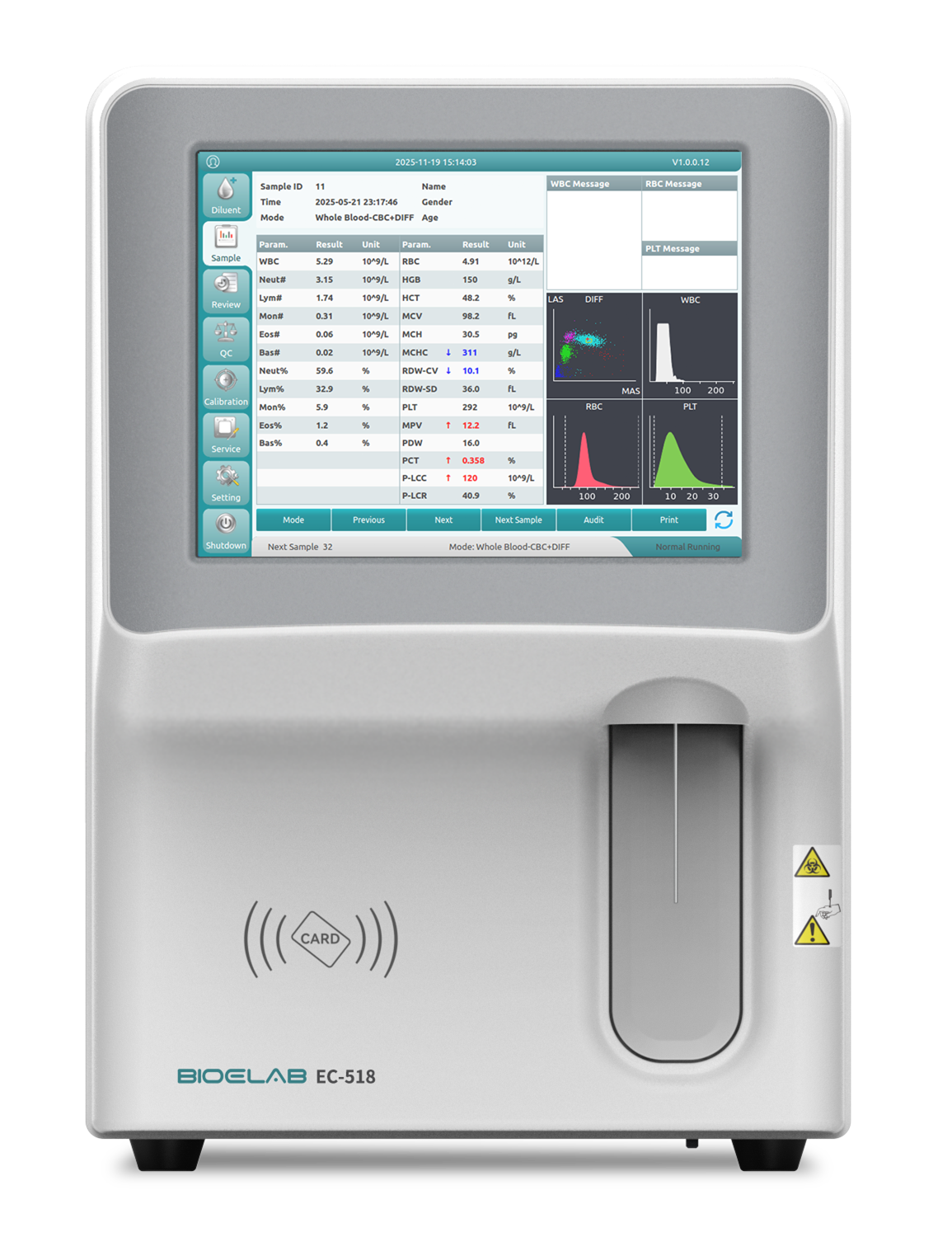

10.4 inch TFT Touch Screen
4 USB ports,1 LAN port
Dilutent, 2 LYSES, Probe Cleaner
