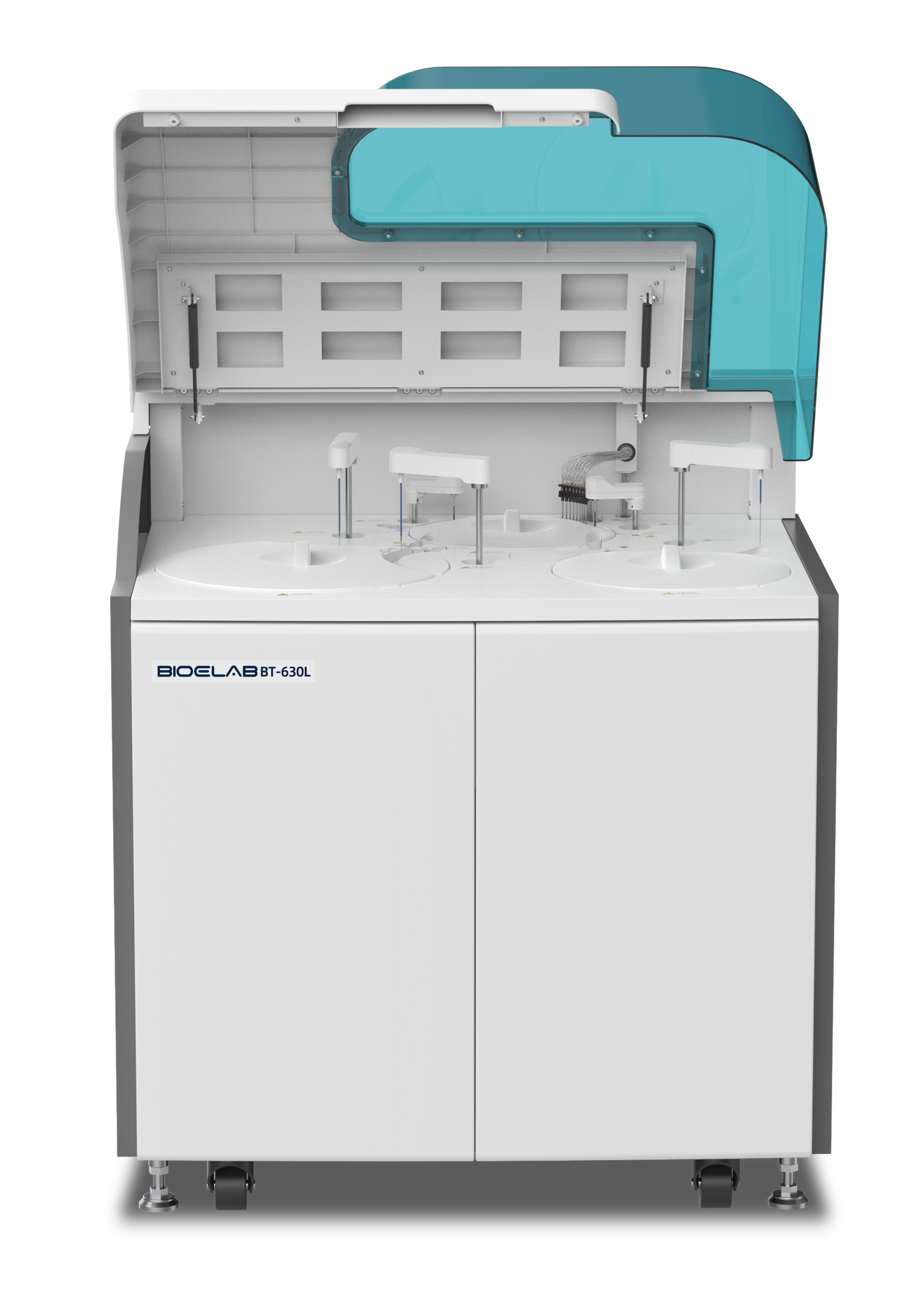

BT-630L Technical specifications

• Throughput

  Chemistry-Constant 600T/H, Chemistry+ISE(optional)-constant 770 T/H

• Sample tray

  120 sample positions, 40 in outer circle, 40 in middle circle and 40 in inner circle.

• Reagent tray

  90 reagent positions, support bar code scanning, 24 hours uninterruptef refrigeration

• Mixing system

  2 independent mixers

• Reaction unit

  119 reaction cuvettes, each with a light diameter of 5mm

• Cuvette washing

  8 stages automatic washing with acid and alkaline cleaning solutions

• Wavelength

  12 wavelengths, 340nm, 405nm, 450nm, 480nm, 505nm, 546nm, 578nm, 600nm, 660nm, 700nm, 750nm, 800nm

• PC Operation system

  Windows10 64bit and above editions
