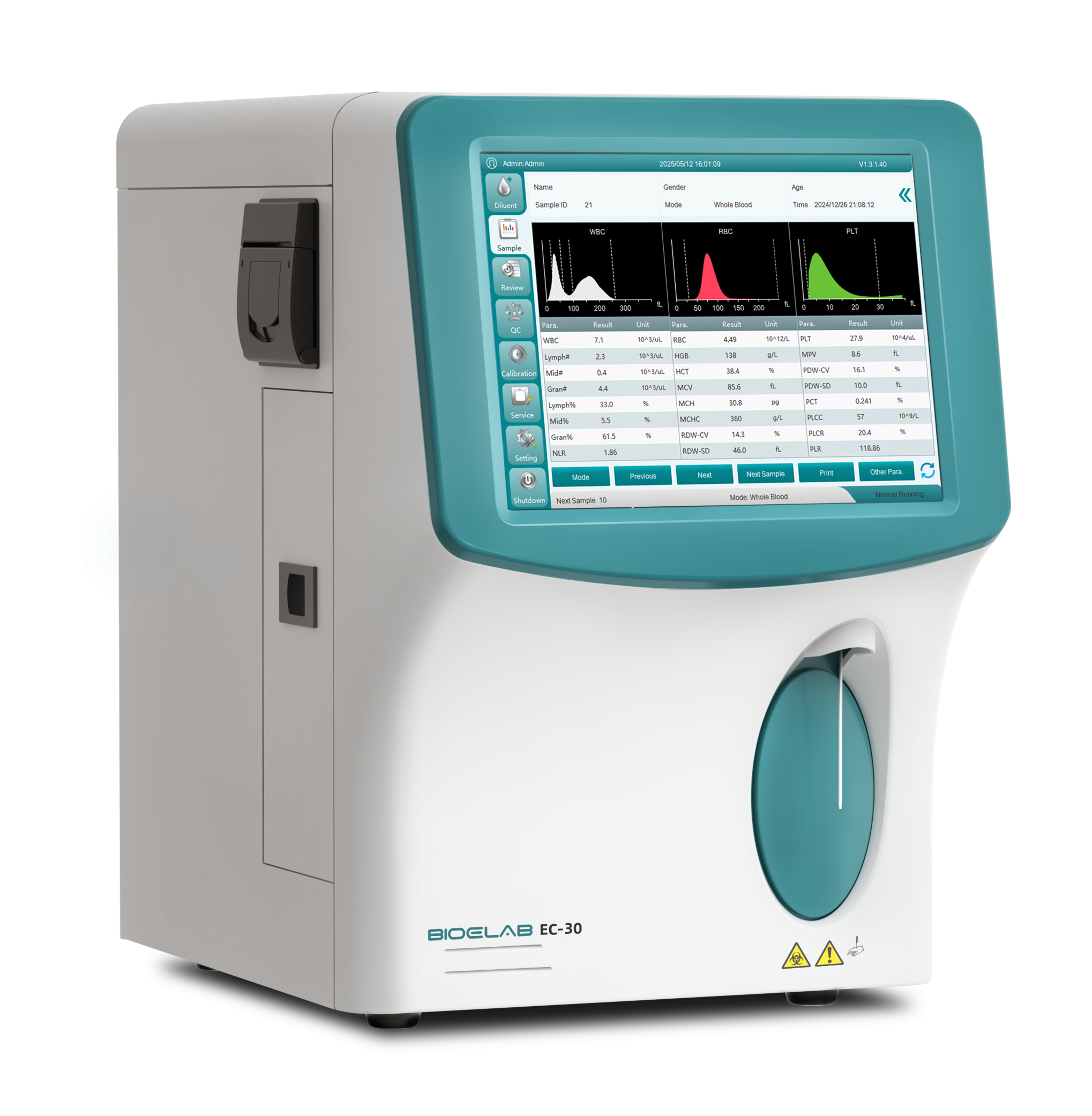

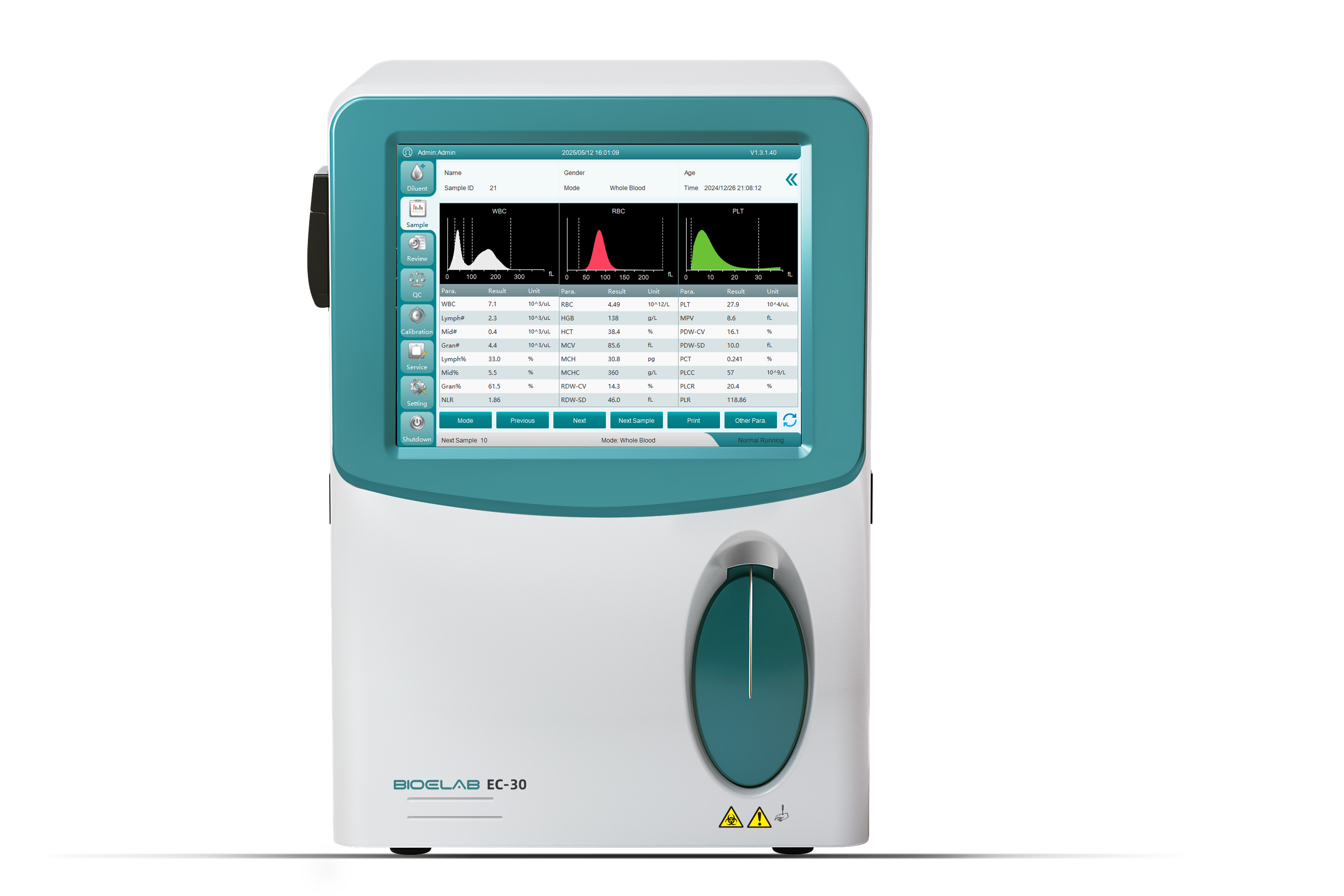

Auto Hematology Analyzer

EC-30

Auto Hematology Analyzer

Compact Design, Efficiency Expert

60 samples/hour
the result processing is more efficient
optimal choice for emergent sample
Auto Hematology Analyzer

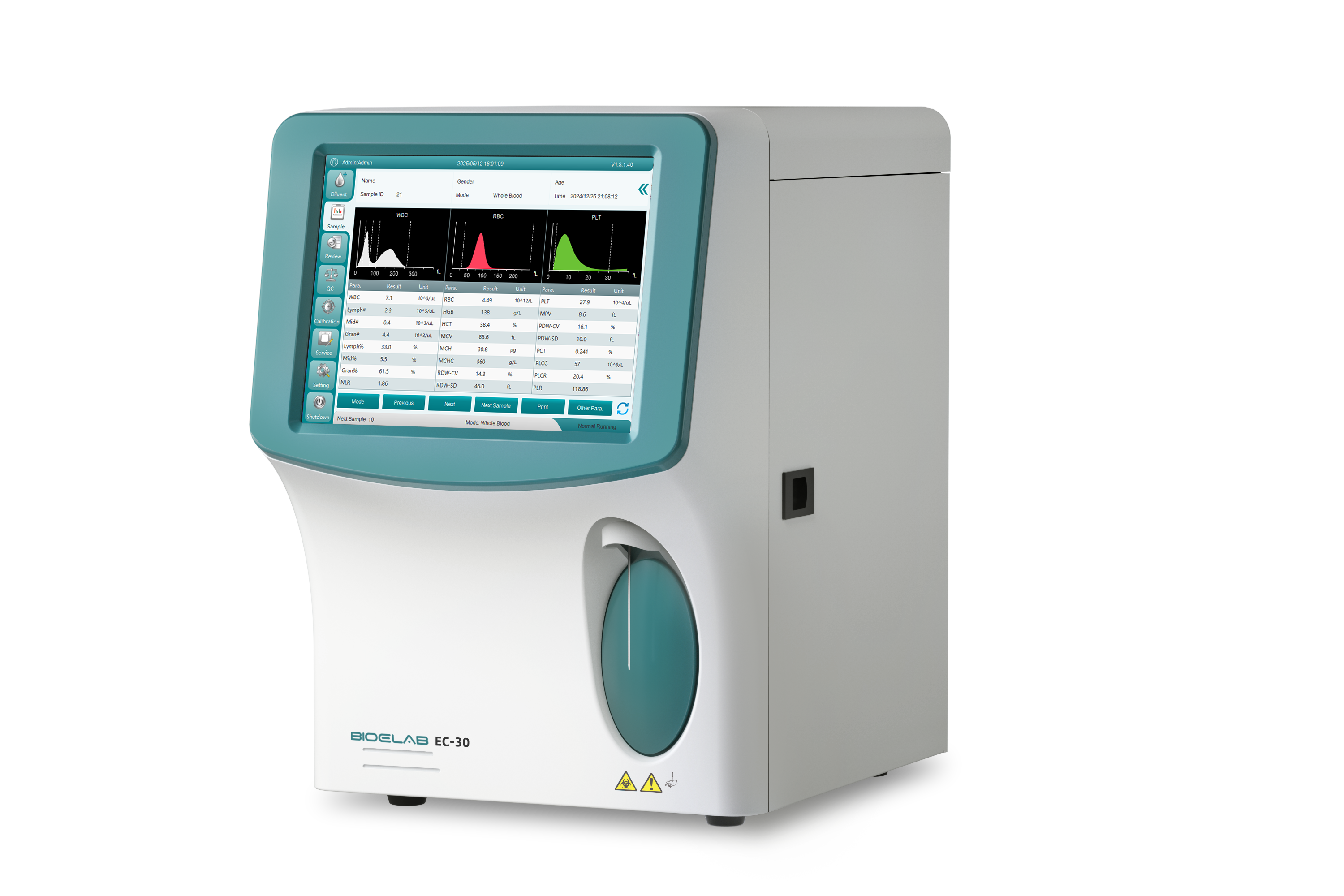

Compact And Smart Intensive Design
Compact And Smart Intensive Design

Compact And Smart Intensive Design

The weight of the whole machine is less than 28kg.

Built-in thermal printer to save space.

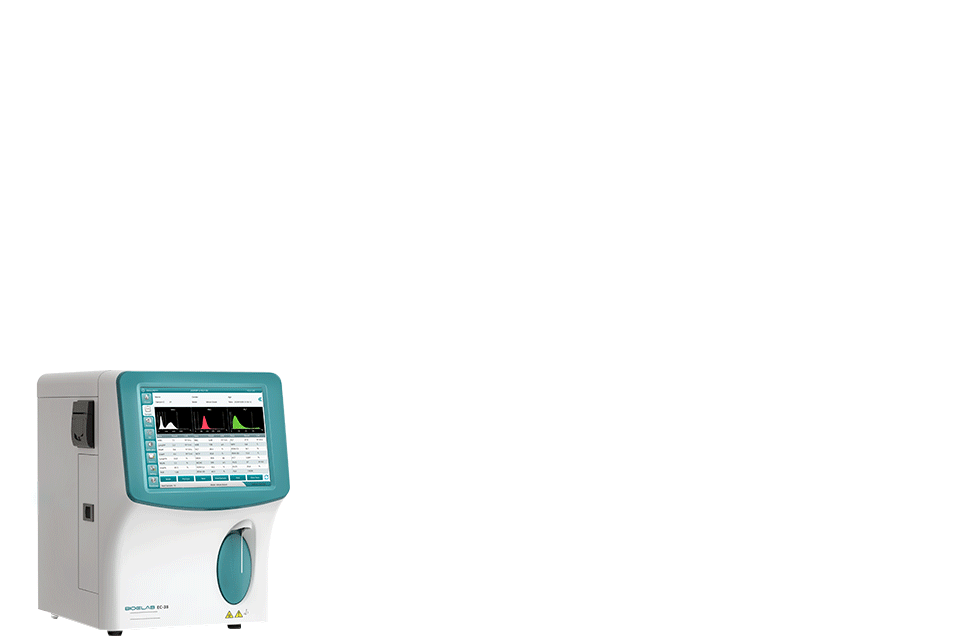

Speed Selection, Rapid Diagnosis
Speed Selection, Rapid Diagnosis

Speed Selection, Rapid Diagnosis

The detection speed can reach 60 samples/hour, the result processing is more efficient, optimal choice for emergent sample.

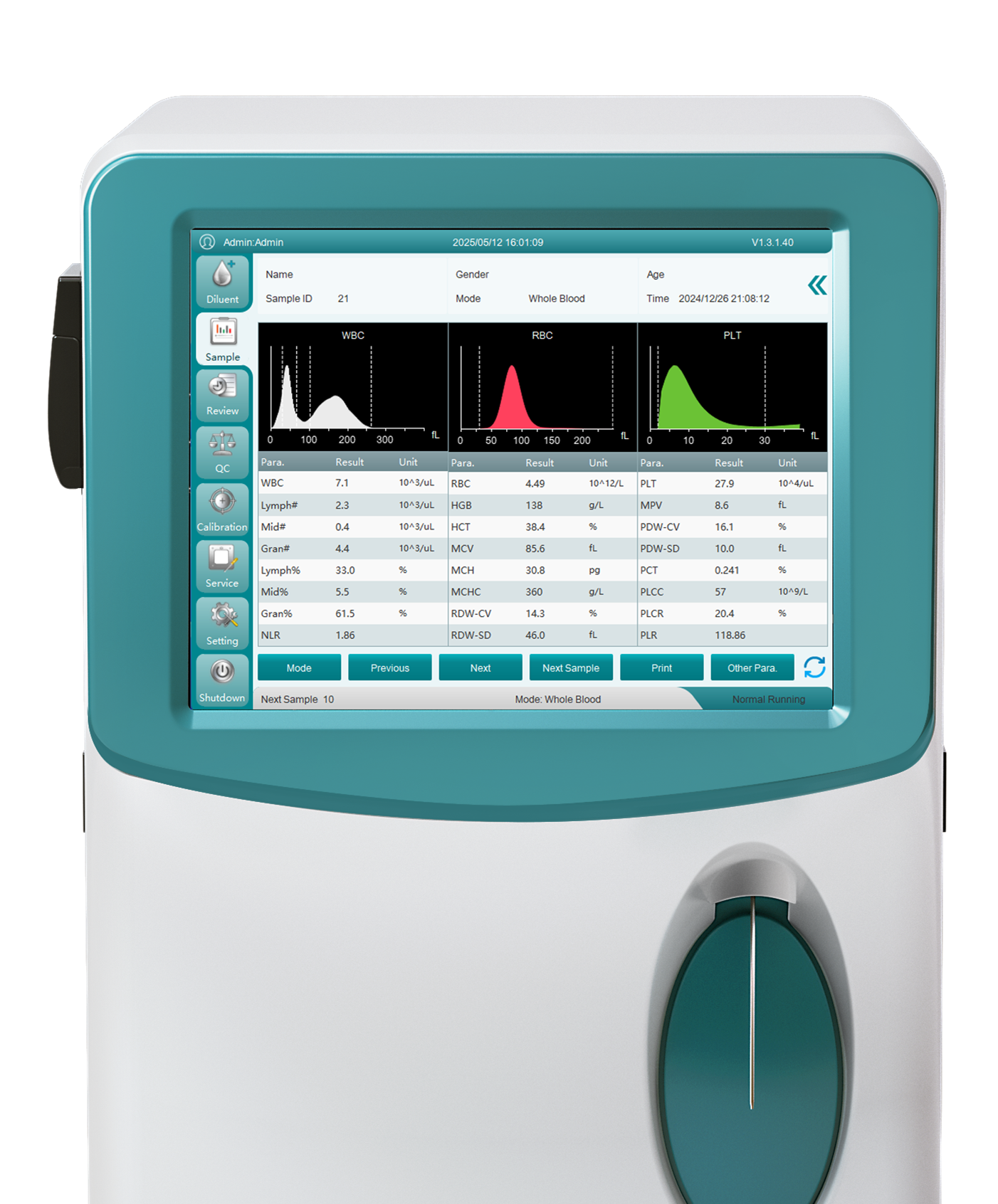

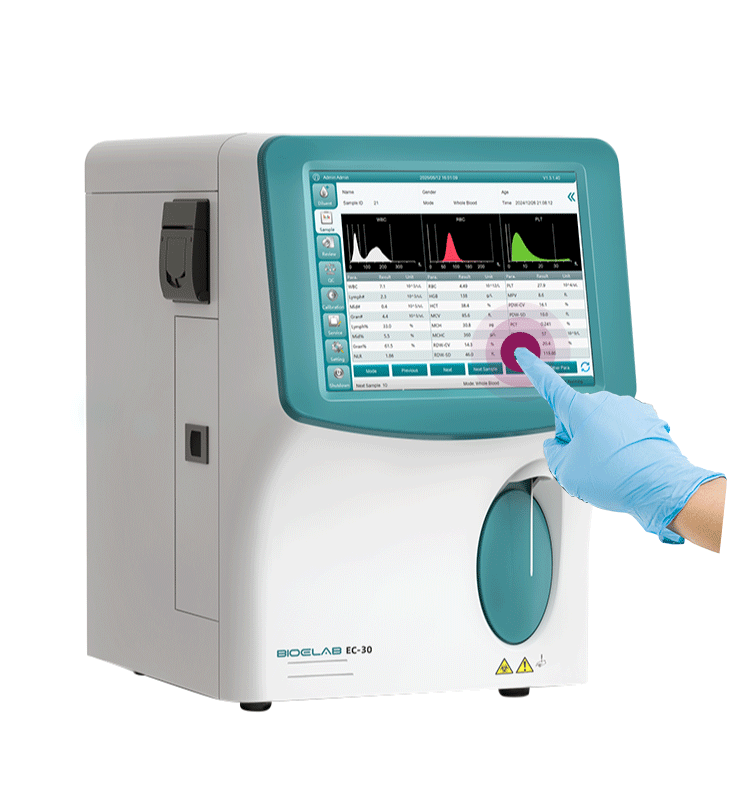

Convenient Operation Through Touch Screen
Convenient Operation Through Touch Screen

Convenient Operation Through Touch Screen

10.4'' touch screen, friendly user interface, covenient operation.

Micro Blood Collection, Accurate And Reliable

Micro Blood Collection, Accurate And Reliable

9μL micro blood collection, peripheral blood test is more applicable.

One Key To Remove Obstacles, Worry-free During Using
One Key To Remove Obstacles, Worry-free During Using

One Key To Remove Obstacles, Worry-free During Using

Equipped with one key obstacle removal technology which can quickly eliminate faults and ensure efficient use.

EC-30 Technical specifications

  • Throughput

    60 samples/hour

  • Detection channel

    Double -channel for counting

  • Sample volume

    Minimum volume 9μl whole blood

  • Detection principle

    Impedance method (WBC, RBC, PLT) and cyanide free colorimetric method (HGB)

  • Detection items

    The detection items include maximum 21 parameters (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, HGB, P-LCC(optional), P-LCR (optional), 3 histograms, alarm for abnormal erythocytes, leukocyte and platelet

  • Report print

    Built-in thermal printer. Support external more than 5 types USB HP printers (optional). Support different language when leaving the factory. Multiple built-in report templates available

  • Display type

    10.4 inch color display screen with touch panel

  • Storage

    500,000 sample results, including histogram and patient information

  • Input/Output

    4 USB ports and Bi-directional LIS connection, support USB keyboard, mouse, USB disk and USB printer

EC-30 Technical specifications EC-30 Technical specifications

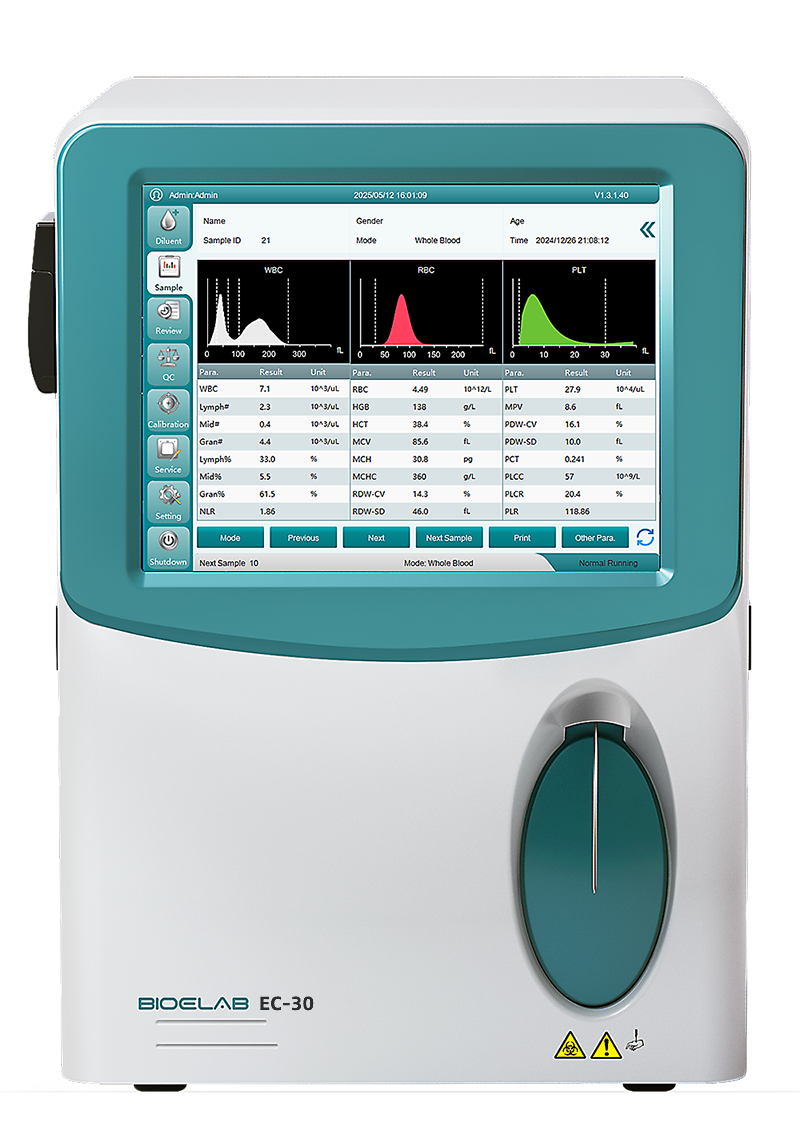

Powerful Inner Core, Huge Storage

Powerful Inner Core, Huge Storage

Storage of 500000 results, results are stored without pressure.
