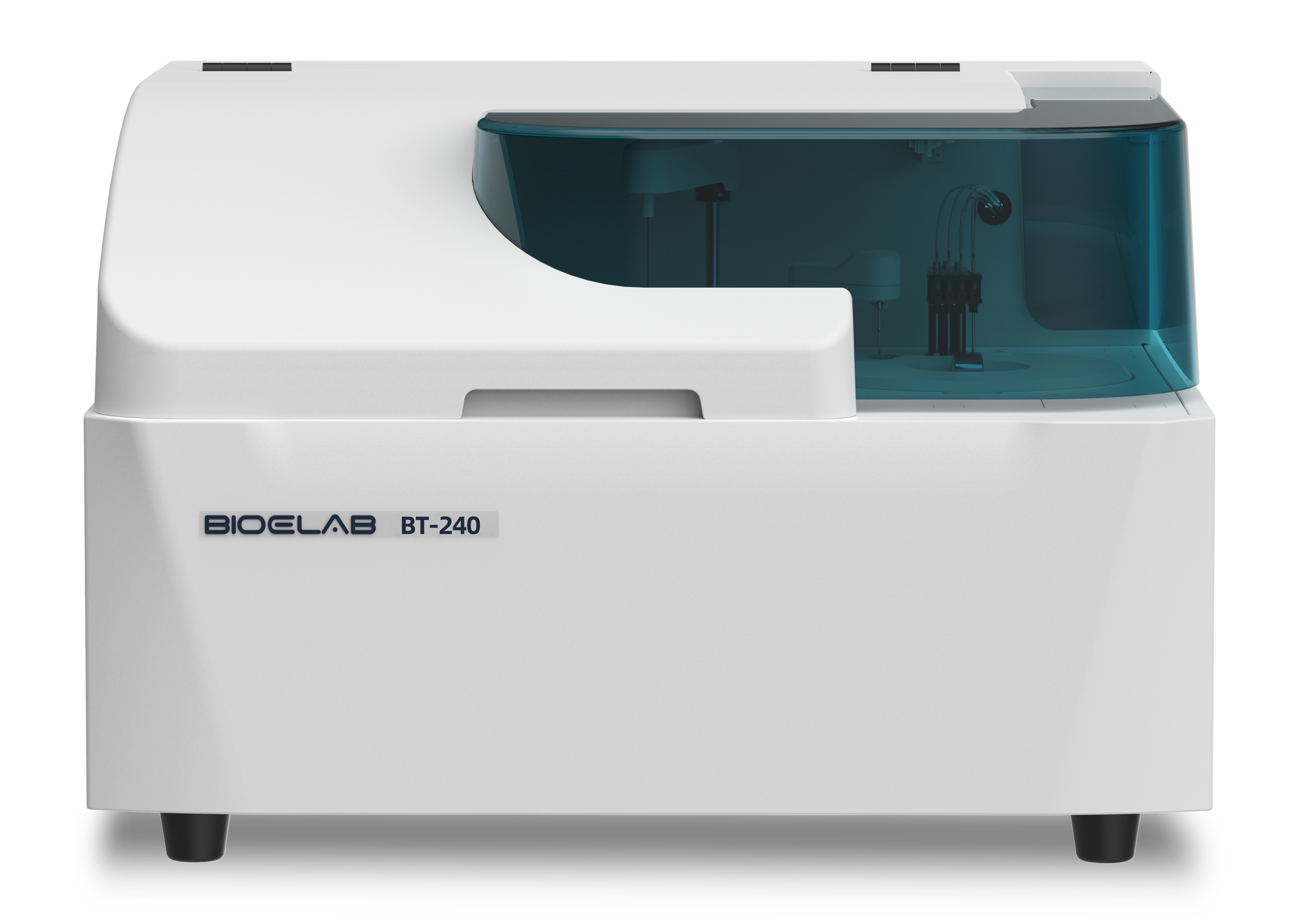

Auto Chemistry Analyzer

BT-240

Auto Chemistry Analyzer

Innovative Design Leads The Future

Simple and novel appearance design
Chemistry: constant 240 T/H
Chemistry+ISE(optional): constant 400 T/H
Auto Chemistry Analyzer

BT-240 Technical specifications

  • Throughput

    Chemistry-Constant 240T/H, Chemistry+ISE(optional)-constant 400 T/H

  • Sample tray

    50~100 sample positions, support barcode scanning, automatic dilution, retesting and manual retesting. Samples can be inserted for emergency handling at any time and will be prioritized for processing.

  • Reagent tray

    50~100 reagent positions, support barcode scanning, 24-hour uninterrupted cooling function.

  • Mixing system

    1 independent mixers

  • Reaction unit

    48 reaction cuvettes, each with a light diameter of 5mm

  • Cuvette washing

    2*4 stages automatic washing with alkaline cleaning solutions

  • Wavelength

    8 wavelengths, 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 700nm

  • PC Operation system

    Windows10 64bit and above editions

BT-240 Technical specifications BT-240 Technical specifications
