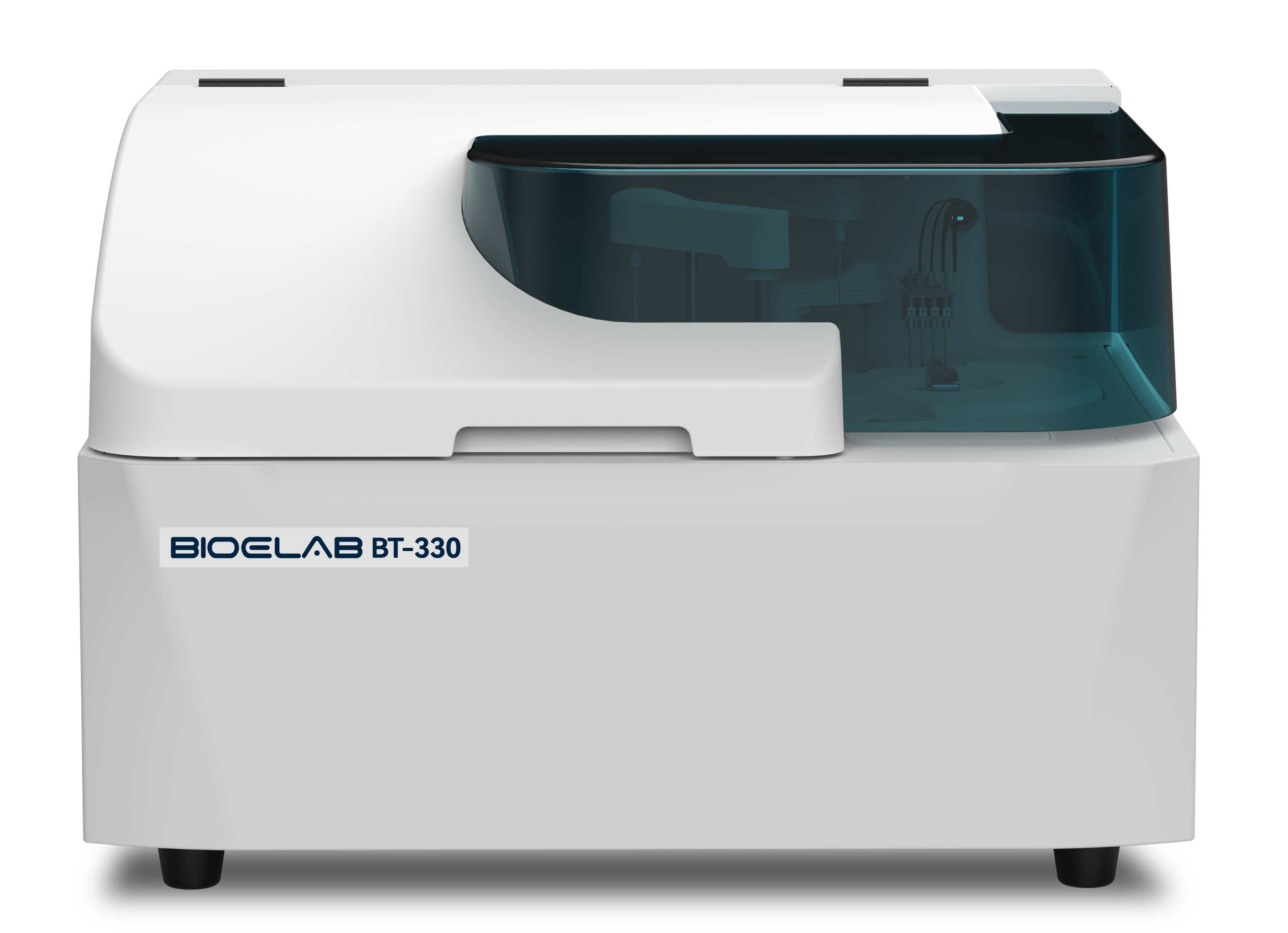

BT-330 Technical specifications

• Throughput

  Chemistry-Constant 330T/H, Chemistry+ISE(optional)-constant 490 T/H

• Sample tray

  50~100 sample positions, support barcode scanning (optional), automatic dilution, retesting and manual retesting. Samples can be inserted for emergency handling at any time and will be prioritized for processing.

• Reagent tray

  50~100 reagent positions, support barcode scanning (optional), 24-hour uninterrupted cooling function.

• Mixing system

  1 independent mixers

• Reaction unit

  68 reaction cuvettes, each with a light diameter of 5mm

• Cuvette washing

  2*4 stages automatic washing with alkaline cleaning solutions

• Wavelength

  8 wavelengths, 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 700nm

• PC Operation system

  Windows10 64bit and above editions
